mist collector

Coolant Mist Collector For CNC Machine

Model：DMG-120/250/370/750
Power Supply：3phase380V/220V 50HZ
Power：120/250/370/750W
Air Volume：5/10/17/33m³/min
Product description: oil mist collector, Coolant Mist Collector
INQUIRY

Large air volume and low energy consumption No consumables required High efficiency purification factory prices Customization available

Air Volume(m3/h)	300~2000
rated power（kw）	0.12~0.75kw
Air pressure ( pa )	800
Noise (Db)	59
Suction diameter ( mm )	100~150

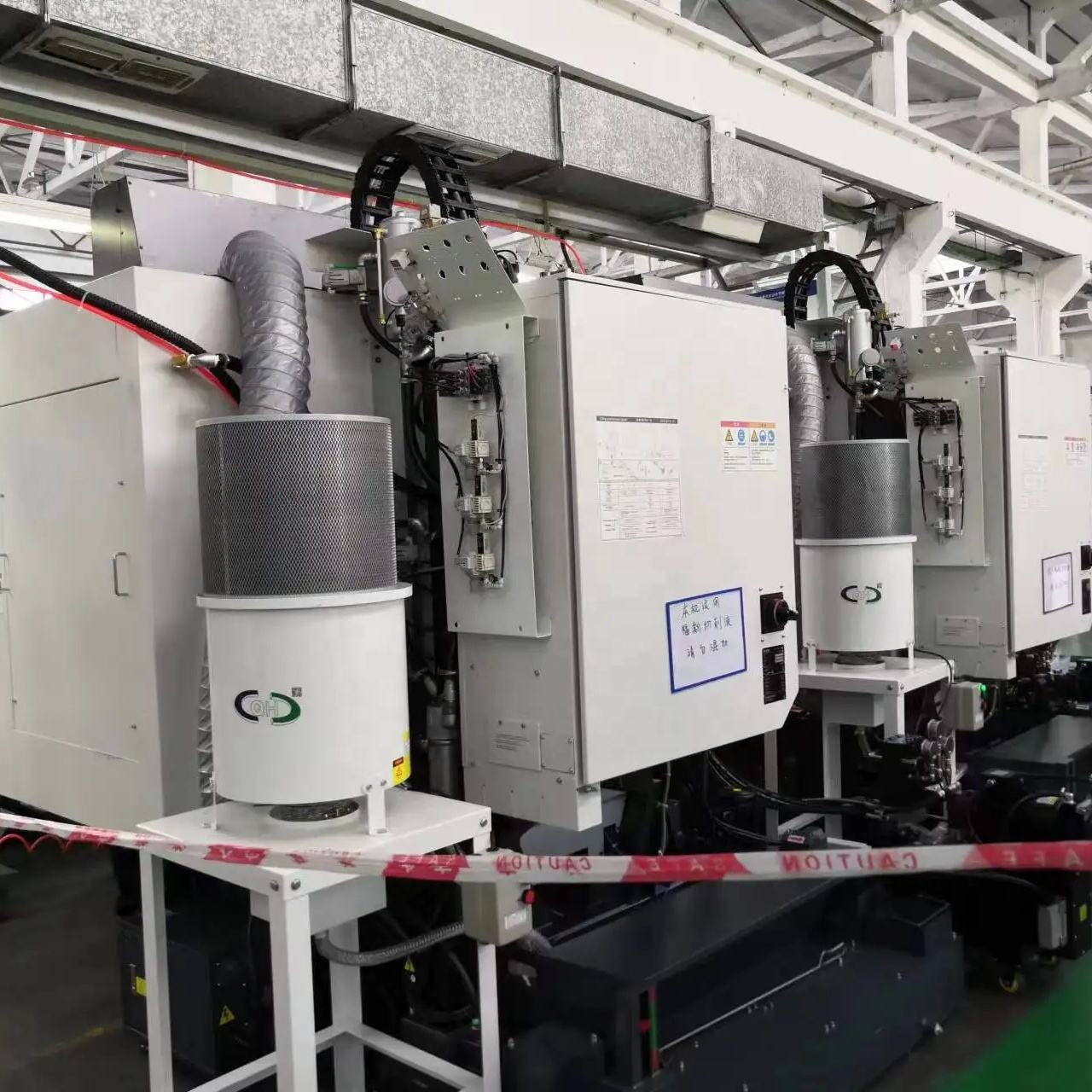

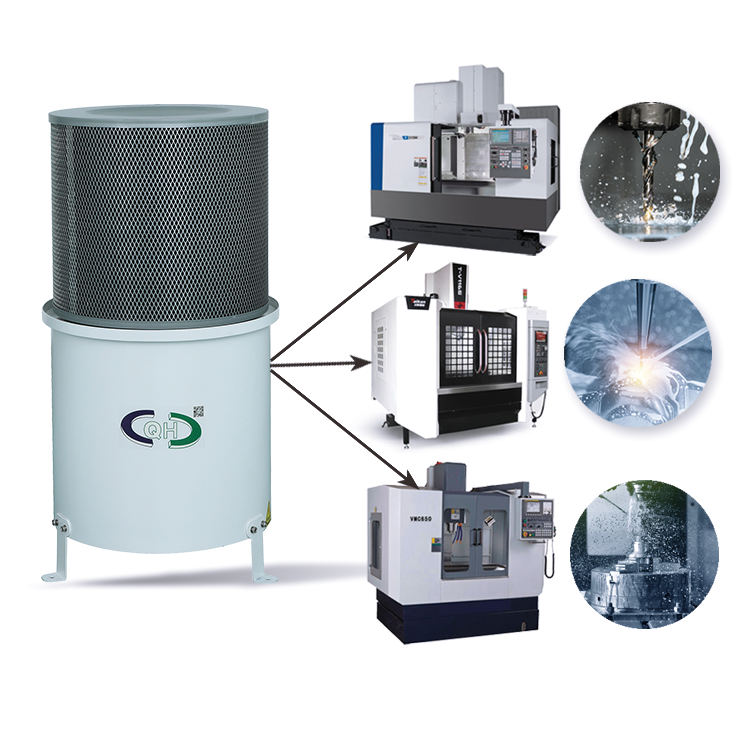

Applicable fields: Collection and purification of oil mist and oil mist produced in the processing of machining centers, CNC lathes, cleaning equipment, cold forging machines, corers, grinders, etc.

FEATURE
Large air volume and low energy consumption
· Equipped with high efficiency fan, large air volume can be realized with low energy consumption
Small size and light weight
· We use centrifugal structure design, so the machine is small and light

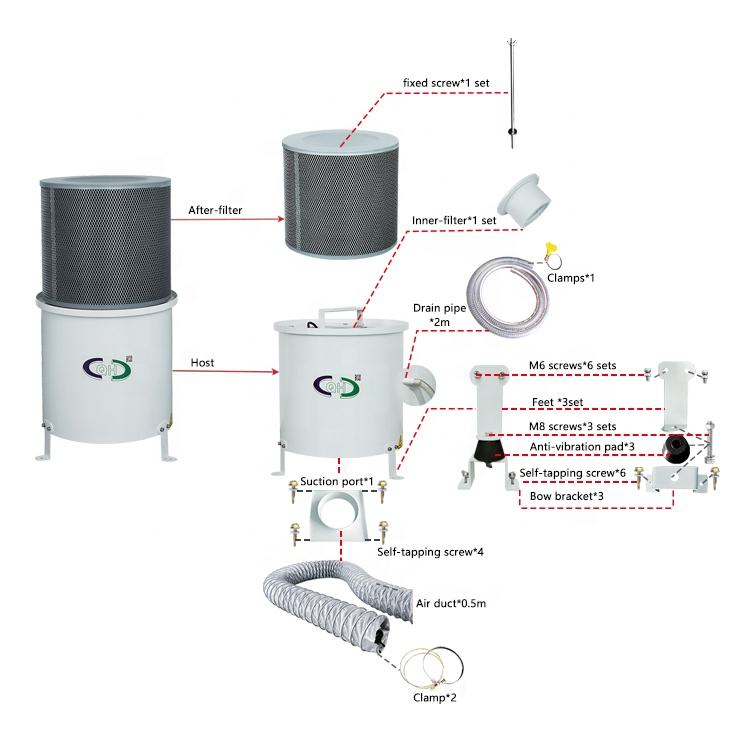

· The installation space is saved and the installation is more convenient. Combination of centrifugal and filter
· The filter cotton further improves the filtering accuracy and efficiency of the centrifugal structure
· According to the demand, two different after-filters can be selected to achieve higher filtering effect

WORKING PRINCIPLE

The air containing oil mist is sucked into the oil mist collector and filtered through the following three steps. · First,centrifugal separation. Driven by the high-speed rotating impeller, the rotating airflow spirals upward, and the oil mist particles are thrown to the inner wall of the machine by centrifugal force to achieve separation.

·Secondly, filtered through multiple layers of filter. ·Finally, filtered again through a high-efficiency filter Suitable
high-efficiency filters are selected for different working conditions of oil mist, which can effectively purify the smog of 0.3 micron level.
